Description
Spec Sheet

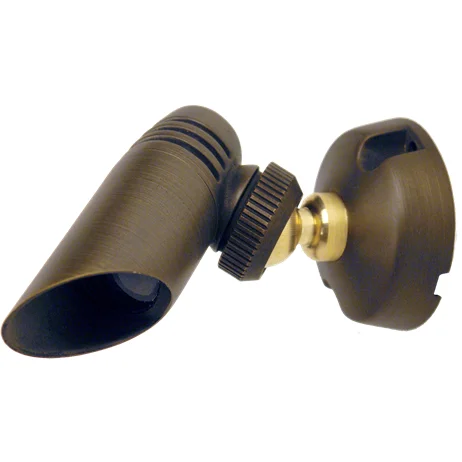

The North Star is ideal when up-lighting is challenged by a small installation area. Featuring a fully adjustable shroud, the Northstar is enhanced by a revolutionary ball and joint swivel mount allowing a 360° rotation, thus giving 100% accuracy when dialing in the proper lighting angle.
NTHSTAROSM BR NL 25’WL WB
| Body | Precision machined from solid brass casting. Body design provides enclosed, water resistant wire way to protect wires. |
| Gasket | High-temperature silicone o-ring for a water-tight seal. |
| Knuckle | Machined brass, exclusive ball and joint. The 360° Orbital Mount™ allows for perfect directional fine tuning. |
| Shroud | Precision machined from brass. Accepts up to one additional lens/hex cell accessory. |
| Lens | Comes with a complete set of optical designer lenses including; spread lens, frosted, hex cell and blue lens for moonlighting effect. |
| Lamp | For use with a FLEX GOLD™ Series MR11 2W LED lamp or a halogen lamp up to 20W. |
| Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. |
| Lamp Connection | Specification grade, beryllium copper lamp holder. GU5.3 base. |
| Wiring | Exclusive UF Intelli-Flex wire with anti-moisture migration connections. |
| Hardware | Cast brass dome mount included. |
| Warranty | The Odyssey Family of products from Unique Lighting Systems® carries a Limited Lifetime Warranty against manufacturer’s defects. |
| Manufacturing | Manufactured to ISO 9001-2008 Quality Systems |
Specifications:
- Solid cast brass construction
- High temperature silicone o-rings
- Specification grade, beryllium copper socket
- Premium grade direct burial cable
- AMC – Anti-Moisture Connections
- Revolutionary ball and joint Orbital Mount allowing a 360° rotation
- Complete lens set included
- 2W max. LED lamp / 20W max. halogen
- Brass Stratosphere mounting bracket
- Weathered brass finish standard
- Limited lifetime warranty
Dimensions:
- Length: 4.6″
- Width: 1.6″
