Description
[shortdesc]
| Horse Power | 1 |
| Pressure | 90 psi |
| CFM Displaced |
2.4 CFM @ 90 PSI |
| MPN | JC10PLUS |
[/shortdesc]
Product

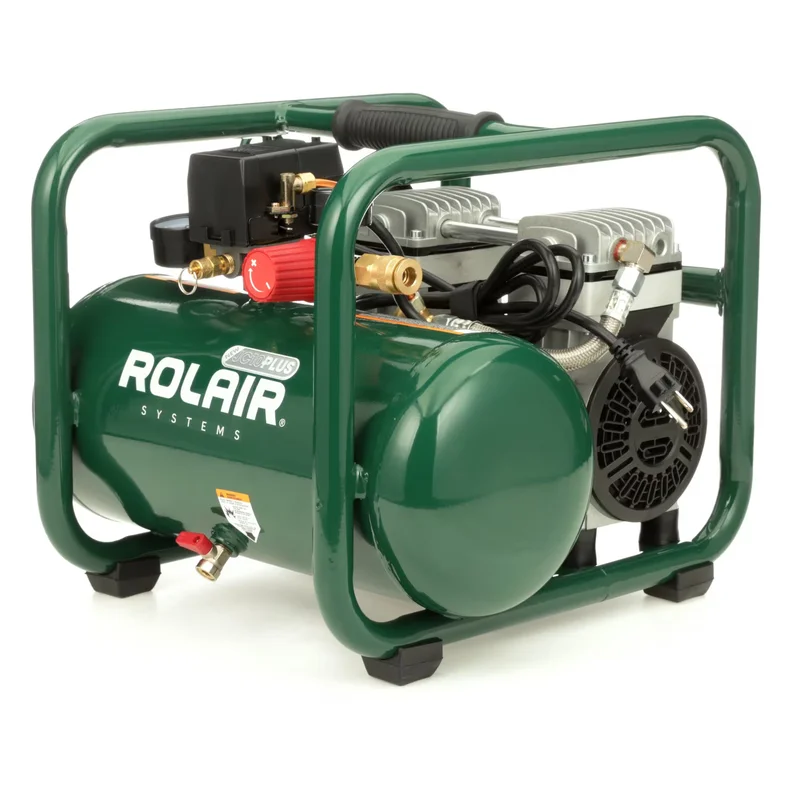

The ROLAIR® JC10PLUS is a high-performance, oil-free air compressor designed for silent and reliable operation. Powered by a 1 HP low-speed motor, it produces 2.4 CFM @ 90 PSI with a maximum pressure of 125 PSI. Enhanced features include a rugged roll-cage, a larger 2.5-gallon tank, and upward-facing gauges for convenience. Compact, lightweight, and ultra-quiet at just 60 dBA, the JC10PLUS is perfect for professionals working in noise-sensitive environments.
Top Features
- Quiet Operation: Produces only 60 dBA for minimal noise on job sites.
- Oil-Free Technology: Dual-piston pump system for long-lasting, maintenance-free use.
- Compact and Portable: Weighs just 50 lbs with an integrated cord wrap for easy carrying.
- Rugged Build: Roll-cage design protects the motor and pump from external damage.
- Performance Efficiency: Delivers 2.4 CFM @ 90 PSI with quick pump-up and recovery times
| Category | Details |
|---|---|
| Horsepower | 1 HP |
| Motor RPM | 1725 |
| CFM Delivered @ 40 PSI | 3.8 CFM |
| CFM Delivered @ 90 PSI | 2.4 CFM |
| CFM Displaced | 5.3 CFM |
| Factory PSI Settings | 95-125 PSI |
| Pump-Up / Recovery Time | :55 / :14 |
| Tank Capacity | 2.5 gallons (9.5 liters) |
| Noise Level | 60 dBA |
| Shipping Weight | 50 lbs (23 kg) |
| Dimensions (L x W x H) | 16.5” x 16.5” x 14” (43 cm x 36 cm x 36 cm) |
| Amp Draw (Running) | 7.5 Amps |
| Thermal Protection | Automatic |
| Additional Features |
|
===
Info & Guides
| User Manual | Download |
| Specification Sheet | Download |
| Schematics | Download |
