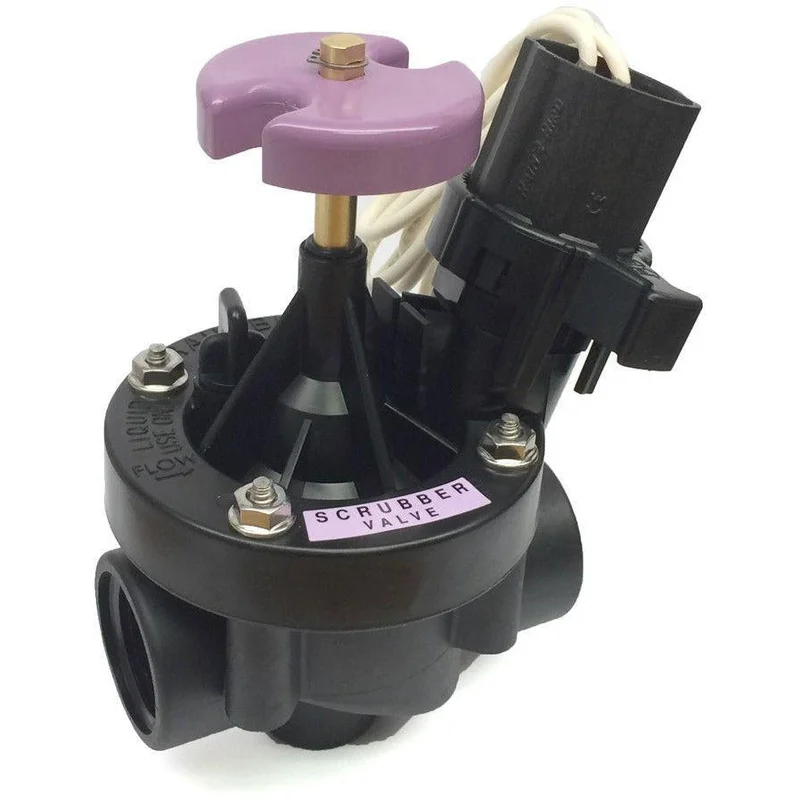

Rain Bird 100PESBR – 1″ Inlet Inline Plastic Industrial Itrrigation Valve ForReclaimed Water

Description

Rain Bird Non-potable 1 inch Industrial Irrigation Valve

The Rain Bird 100PESBR 1″ Inlet Inline Plastic Industrial Irrigation Valve is your most durable solution for handling the challenges of non-potable or “dirty” water systems. This 1-inch industrial-grade valve is specifically engineered for reclaimed water applications, featuring chlorine and chemical-resistant components and a signature purple flow control handle for easy identification.

Built from heavy-duty, glass-filled nylon, the 100PESBR is designed for long life under harsh conditions and high pressures up to 200 psi. Its standout feature is a patented scrubber mechanism that actively scrapes the stainless steel filter screen clean with every cycle. This self-cleaning action prevents clogging from algae, grit, and other debris, making it the ideal choice for reliable, low-maintenance operation in reclaimed, pond, or well water irrigation systems.

• 1 in. (26/34) chlorine-resistant valve for reclaimed water irrigation applications
• Plastic diaphragm and scrubber components molded of chlorine- and chemical-resistant plastic material
• Durable glass-filled nylon construction for long life and heavy-duty performance at 200 psi (13,80 bars) pressure
• Stainless steel studs molded into the body. Bonnet can be attached and removed easily without damaging threads
• One-piece solenoid design with captured plunger and spring for easy servicing; prevents loss of parts during field service
• External bleed protects the solenoid ports from debris when system is flushed
• Purple flow control handle standard on PESB-R Series valves

*One Solenoid Handle Per Order

Rain Bird 100PESBR Additional Features:

• Internal bleed operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning on the valve at the controller first.
• Slow closing to prevent water hammer and subsequent system damage.
• Scrubber mechanism scrapes stainless steel screen clean to break down grit and plant material.
• Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
• Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bars).

Rain Bird 100PESBR Irrigation Valve Specs:

• Valve Size: 1 in
• Valve Type: Inline
• Material: Plastic
• Valve Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
• Valve Options: Dirty Water
• Valve Series: PESB-R
• Operating Temperature: Up to 150° F (66° C)
• Dimensions:
• Height: 6 1/2 in
• Length: 4 in
• Width: 4 in
• Electrical Specifications:
• 24 VAC 50/60 Hz (cycles per second) solenoid
• Inrush current: 0.41A (9.9VA)
• Holding current: 0.14A (3.43VA)
• Coil resistance: 30-39 Ohms
• Flow Range:
• Without PRS-D: 0.25 to 200 GPM (0,06 to 45,40 m3/h; 0,02 to 12,60 l/s)
• With PRS-D: 5 to 200 GPM (1,14 to 45,40 m3/h; 0,32 to 12,60 l/s)
• Operating Pressure: 20 to 200 psi (1,38 to 13,80 bars)
