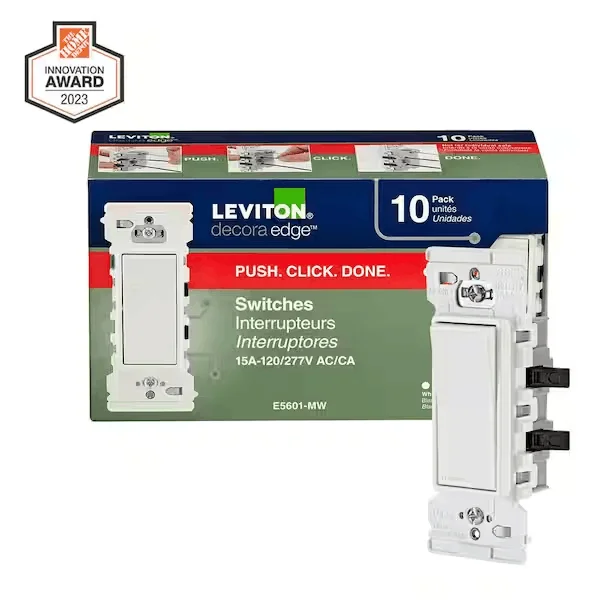

Decora Edge wiring devices provide the traditional appearance and superior performance of Decora devices in a faster, easier-to-install, and safer design. The line consists of Single Pole and 3-Way Switches and a Tamper-Resistant Outlet. Innovative installation features such as color-coded lever terminals (including the ground terminal) for faster, efficient wiring, a larger strap with a unique tongue and groove alignment feature for quicker trim out on multi-gang installations, and no exposed metal parts for safety, make Decora Edge ideal for new home construction and MDU projects as well as retrofit applications. Installers using Decora Edge will experience an installation process as unique as it is practical. The color-coded levers provide the foundation for quick installation by helping to rapidly identify the correct terminal for wiring, including a lever terminal for the ground wire. The lever termination feature assures a positive connection has been made. This patent pending design has a snap feature with an audible ‘click’ so installers can be confident with every termination.
- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduce risk of miswiring
- Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
- No exposed metal parts for enhanced safety; eliminates need for electrical tape
- Strap’s unique tongue and groove alignment offers quicker trim out on multi-gang installations
- Lever connectors work with 12 gauge and 14 gauge stranded and solid copper wire
- Wire openings prevent wire insulation from being inserted into the terminals
- 1-standard strip gauge for all devices
Specifications
| Brand | Leviton |
| Model | M02-E5601-0MW |
| Features | No Additional Features |
| Amperage (A) | 15 A |
| Compatible Bulb Type | CFL, Halogen, Incandescent, LED |
| Function Type | Single Pole |
| Indoor/Outdoor | Indoor |
| Mounting Type | In-Wall |
| Number of Switches | One |
| Switch Type | Maintained |
| Color/Finish | White |
| Commercial/Residential | Residential |
| Material | Thermoplastic |
| Voltage (V) | 277v |
| Finish Type | Gloss |
| GTIN | 078477332481 |
| Includes | No Additional Items Included |
| MPN | M02-E5601-0MW |
| Number of Poles | 1 |
| Switch Style | Rocker |
