Description

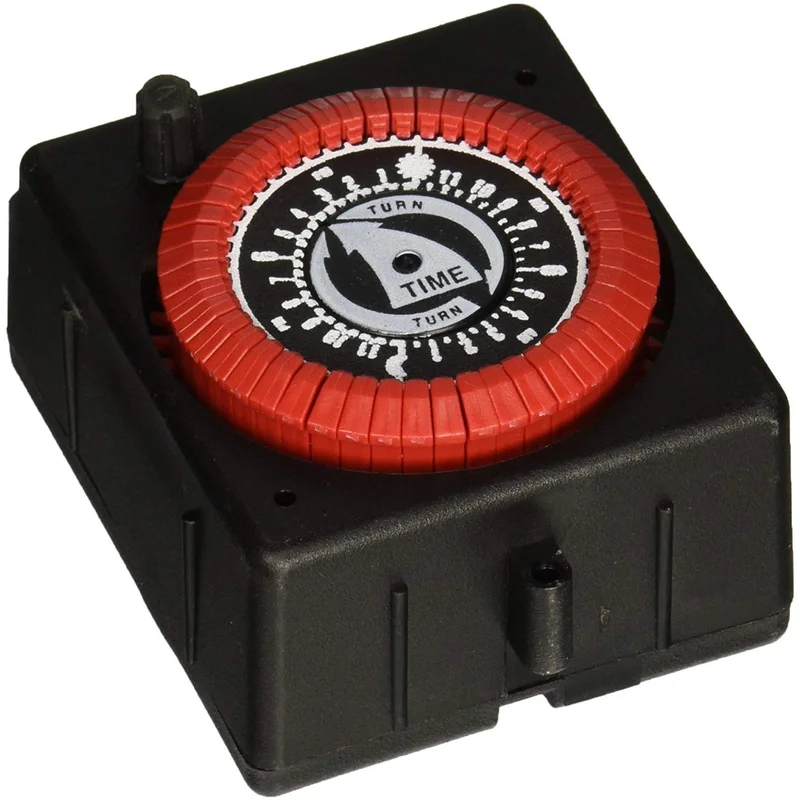

The Intermatic PB913N66 replacement timer mechanism is a 24 hour timer which may be used for for pumps, cleaners and other types of loads. The timer has 3-way mounting; flush in round opening, raised in rectangular opening or on base. Quick-connect terminals for easy installation.
SPECIFICATIONS:
- 3 1/3 in. H x 2 13/16 in. W x 1 61/64 in. D
- 120 volts AC
- SPST switch
- 24-hour dial
- Minimum ON time of 1 hour, maximum ON time of 23 hours, increments of 30 minutes
- Manual override switch
- 20 amp resistive electrical rating
Specifications
Has Manual Override Yes
Has Override Switch Yes
Input Voltage Ranges 120 VAC, 60 Hz
Maximum Cycle Time 23 hrs
Minimum Cycle Time 1 hr
Motor
1 HP, 16 FLA, 120 VAC, 60 Hz
2 HP, 12 FLA, 240 VAC, 60 Hz
Mounting Options Panel, Surface, Flush
Number of Circuits 1
Operation Mode 24-hour
Other Certifications and Compatibilities RU
Pilot Duty 360 VA, 120-277 VAC, 60 Hz
Product Depth (in) 1.953
Product Depth (mm) 49.6
Product Height (in) 3.333
Product Height (mm) 84.6
Product Width (in) 2.813
Product Width (mm) 71.4
Resistive 20 A, 120-277 VAC, 60 Hz
Switch Type SPST
Timing Interval 30 min
Tungsten 1250 W, 125 VAC, 60 Hz
Warranty 1-Year limited
Wiring Option
(4) 1/4″ male (2) for load (2) for independent clock motor, Terminals
