Description

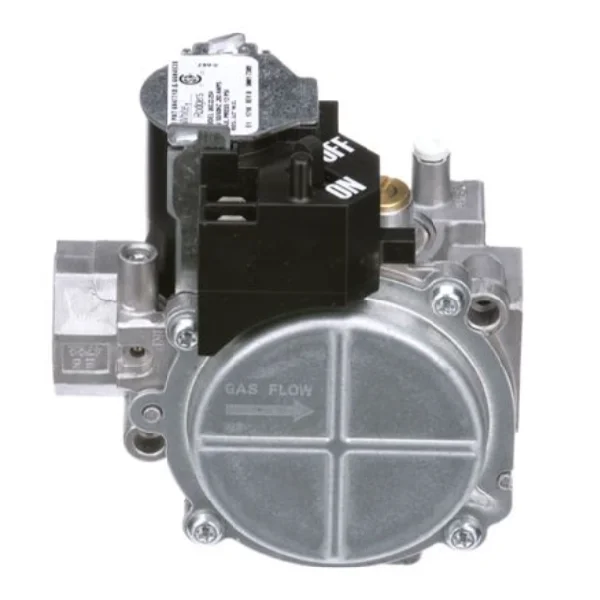

Emerson 36J27-554 36G-36J Series Gas Valves

Features:

• Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
• Slow open, modulating models.
• Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
• Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
• Mounts in any position including upside down
• CSA approved

Specifications:

• Voltage – 24 Vac 50/60Hz
• Opening Style- Modulating
• Pipe Size
• Regulator Setting – 3.5”
• Regulator Adjustment Range – 0.4”-4.0”, Nat. Gas
• Regulator Adjustment Range – 1.3”-11.5”, LP Gas
• LP Conversion Kit Included – Yes
• Reducer Bushing Kit – Yes
• Flow Direction – Straight Through
• Side Taps – No
• Inlet/Outlet Pressure Tap – Yes/Yes
• Standing Pilot with Line Interrupter – No
• HSI/DSI – Yes
• Intermittent/Proven Pilot – No
