Description

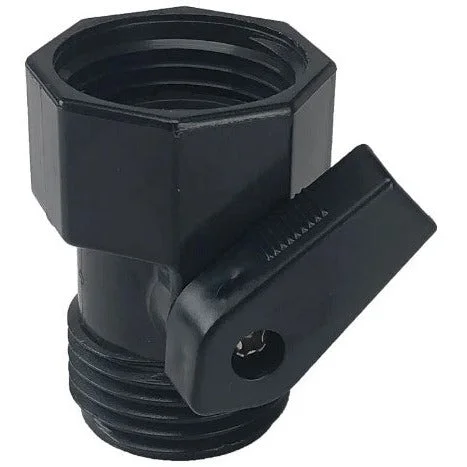

DIG’s range of 1/4, 1/2 and 3/4 barbed and threaded shut-off valves are used for manual control of individual drip-line laterals, drip tubing or micro tubing, and for screen filters as a flush valve.
Shut-Off Valve Specifications
- Operating pressure: up to 60 PSI (4.2 BAR)
- Recommended operating pressure: 15 to 30 PSI (1 to 2.1 BAR)
- Temperature range: up to 130°F (54°C) *Available inlet and outlet configurations:
- 3/4″ FPT x 3/4″ MPT (model 28-004)
- 3/4″ FPT x 1/2″ (17 mm) barb (model 28-006); fits drip tubing or drip line with .570″ to .600″ ID
- 1/2″ (17 mm) barb (model 28-007) fits drip tubing or drip line with .570″ to .600″ ID
- 3/4″ FPT x 1/2″ (16 mm) barb (model 28-012); fits drip tubing or drip line with .500″ to .540″ ID
- 1/2″ (16 mm) barb (model 28-013); fits drip tubing or drip line with .500″ to .540″ ID
- 3/4″ FHT x MHT (model 28-018); use as a filter flush valve
- Materials: high-impact plastic
