Description

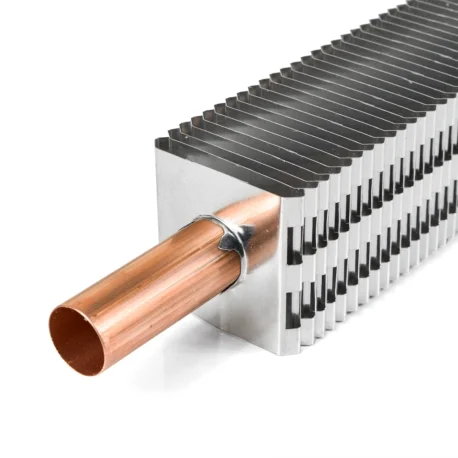

2ft long replacement heating element for Fine/Line 30 and Base/Line 2000 Slant/Fin baseboard. Comes with (2) plastic noise-supressing cradles pre-installed.
NOTE: to prevent bending of the fins, do not pull element out from the narrow end of the box. Instead, open both ends of the box and carefully cut it open length-wise along the very edge.
Features:
- Outputs ~600 BTU’s per linear ft of length (180°F standard, @ 4 GPM)
- Individually boxed to prevent scratching & damage on the jobsite
- Comes with (2) plastic expansion cradles
- Made in the USA
Technical Specifications:
- Total length: 24″
- Active finned length: 5-6″ less than total length
- Connections: 3/4″ copper sweat
- Aluminum finns: 2-5/16″ x 2-1/8″, spaced 55 per linear ft
- Plastic cradles included (pre-installed): 2
- BTU’s: (see specs file) varies by supply temperature and flow rate – averages ~600 BTUs per linear ft (180°F temperature @ 4GPM)
