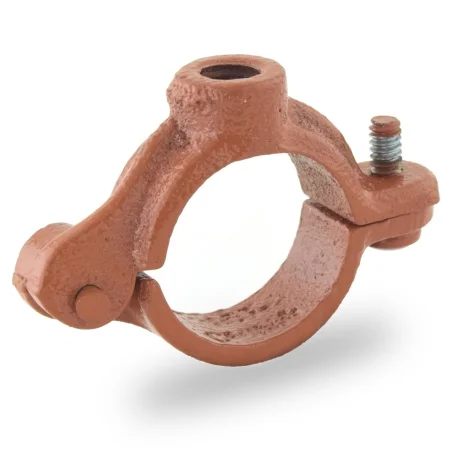

1″ Copper Epoxy Coated Split Ring Hanger

Description

Supports vertical or horizontal runs of 1″ (1-1/8″ OD) copper pipe (K, L or M types).

Technical Specifications:

• For Copper Pipe Size: 1″ (1-1/8″ OD)
• Material: Malleable Iron
• Finish: Copper Epoxy Coated
• Threaded Rod Size: 3/8″
• Max Recommended Load: 180 lbs
• Complies w/ Federal Specifications A-A-1192A (Type 12)
• ANSI/SP69 & SP-58 (Type 12).
