Description
Note: a PXT3511 reamer tool is required for all PEX-AL-PEX connections.

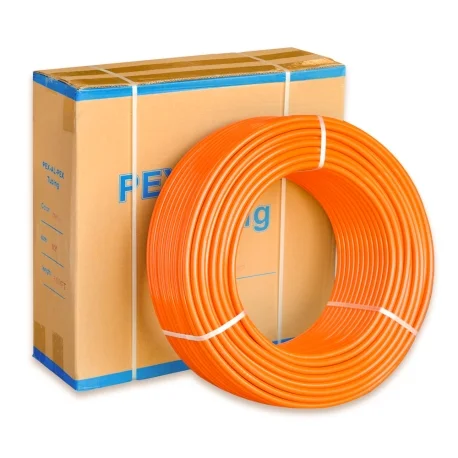

500ft roll of 1/2″ PEX-AL-PEX Tubing for use in radiant heating applications.
Meets/exceeds ASTM F1281, CSA B137.10 standards.
Also certified for use in domestic water applications. UPC listed by IAPMO.
Pressure rated at: 80psi @ 200F, 160psi @ 140F, 200psi @ 73F.
Packing: Box. Dimensions: 26″ x 26″ x 10″. Weight: 39.0 lbs
Everhot PEX-AL-PEX Tubing:
- Is manufactured to ASTM F1281 & CSA B137.10 standards.
- Tested and Certified by NSF for potable water applications and complies with NSF/ANSI 61 standard.
- Lead-Free Certified by NSF, complies with NSF/ANSI 372 (nsf-pw-g) standard and SDWA guidelines, lead-free compliant for all of the USA.
- NSF Certified to the Uniform Plumbing Code (UPC).
- Meets chlorine resistance requirements when tested in accordance with ASTM F2023.
Applications:
1/2″ PEX-AL-PEX Tubing is commonly used for radiant heating applications projects such as concrete slabs (wire mesh or rebar reinforced), thin slabs (non-reinforced), below the subfloor heating (staple-up), sandwich type installations (between subfloor and finished floor) and many others.
Typical loop length for 1/2″ PEX-AL-PEX varies from 250ft to 350ft, depending of the application, supply temperatures, flow rates, etc. 300ft is considered standard for typical concrete slab install.
Compatibility:
PEX-AL-PEX tubing can be installed using compression style PEX fittings of Press type system (fittings, sleeves and tools).
Cross-References:
- Watts (RadiantPEX-AL): RL0508-500-OR
- Zurn (Alumicor): Q3PAP500X
- And same size Multicor (Uponor) and FostaPEX (Viega) tubing in similar coil lengths
